| DO-41 /DO-15/DO-201AD HIGH EFFICIENCY RECTIEIER DIODES 高效整流器 | |||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
reverse
recoverytime |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | TRR (Max) （ns） | IR (Max) (uA) | |||
| 5A系列 | |||||||
| HER501 | 5.00 | 1.00 | 50.00 | 50 | 50.00 |
DO-201AD
(DO-27) | 1.25K |
| HER502 | 5.00 | 1.00 | 100.00 | 50.00 | |||
| HER503 | 5.00 | 1.00 | 200.00 | 50.00 | |||
| HER504 | 5.00 | 1.30 | 300.00 | 50.00 | |||
| HER505 | 5.00 | 1.30 | 400.00 | 50.00 | |||
| HER506 | 5.00 | 1.70 | 600.00 | 70 | 70.00 | ||
| HER507 | 5.00 | 1.70 | 800.00 | 70.00 | |||

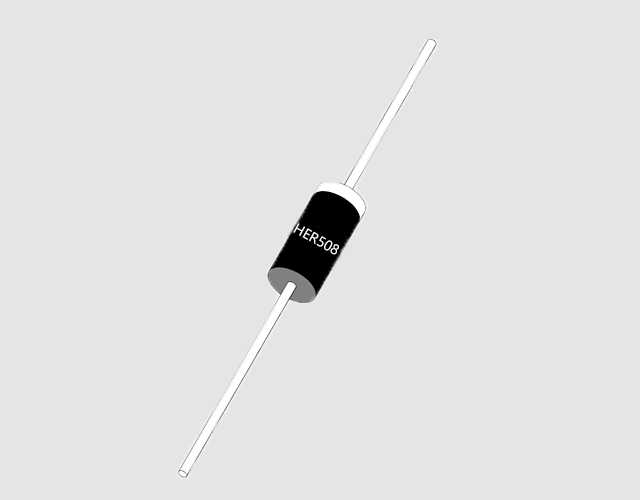

| HER508 | 5.00 | 1.70 | 1000.00 | 70.00 | |||
| DO-41 /DO-15/DO-201AD HIGH EFFICIENCY RECTIEIER DIODES 高效整流器 | |||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
reverse
recoverytime |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | TRR (Max) （ns） | IR (Max) (uA) | |||
| 5A系列 | |||||||
| HER501 | 5.00 | 1.00 | 50.00 | 50 | 50.00 |
DO-201AD
(DO-27) | 1.25K |
| HER502 | 5.00 | 1.00 | 100.00 | 50.00 | |||
| HER503 | 5.00 | 1.00 | 200.00 | 50.00 | |||
| HER504 | 5.00 | 1.30 | 300.00 | 50.00 | |||
| HER505 | 5.00 | 1.30 | 400.00 | 50.00 | |||
| HER506 | 5.00 | 1.70 | 600.00 | 70 | 70.00 | ||
| HER507 | 5.00 | 1.70 | 800.00 | 70.00 | |||
| HER508 | 5.00 | 1.70 | 1000.00 | 70.00 | |||
